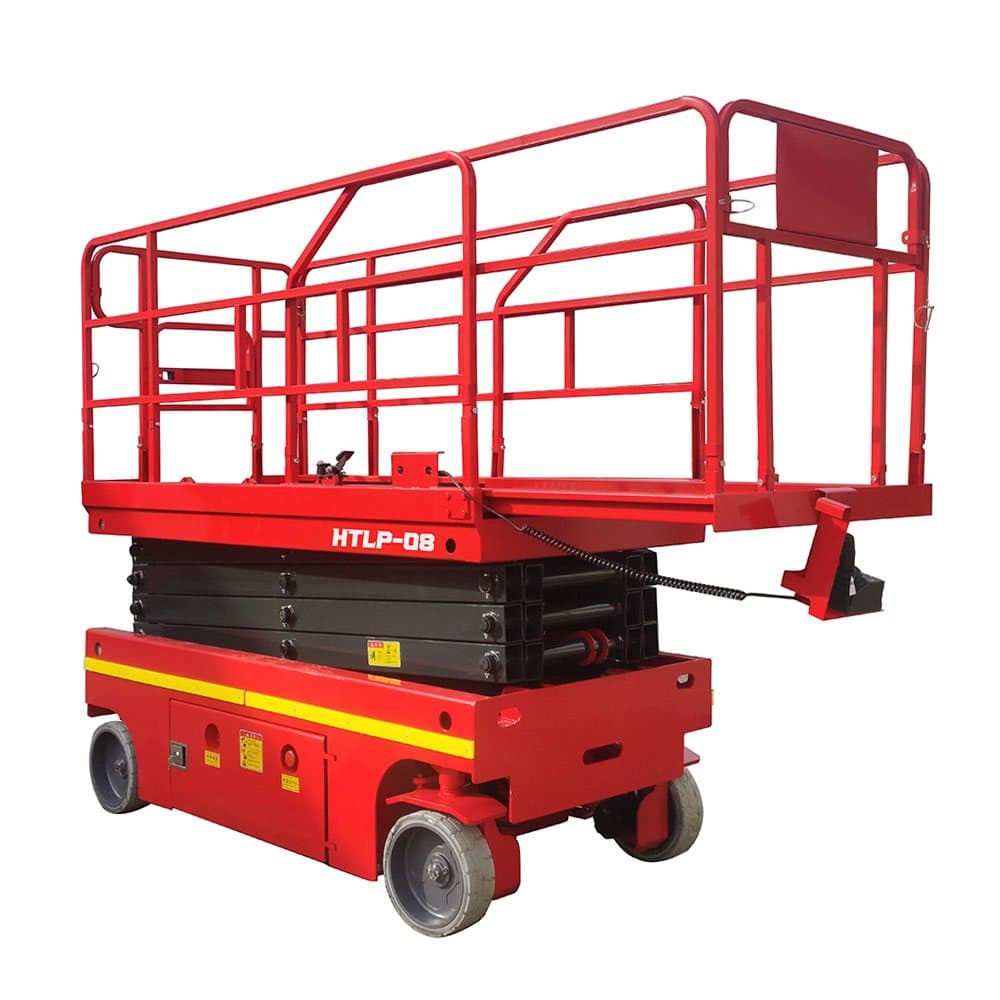

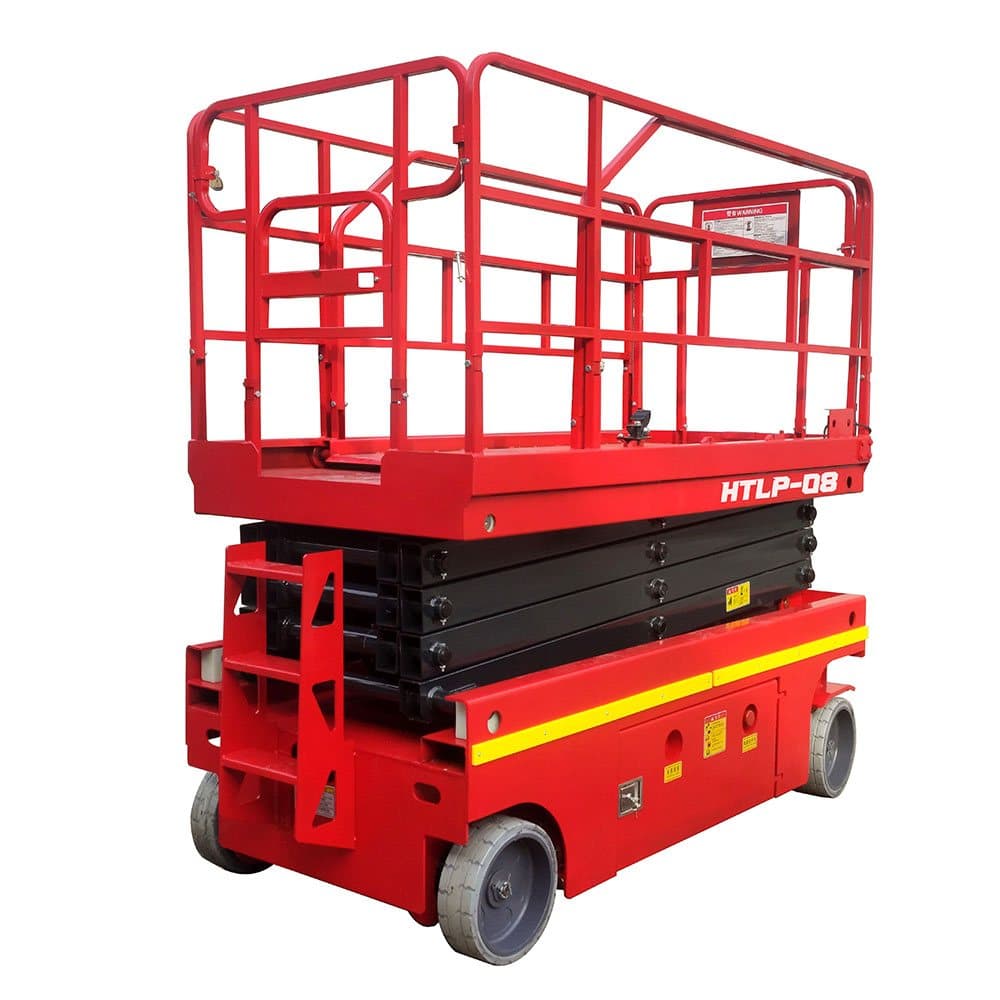

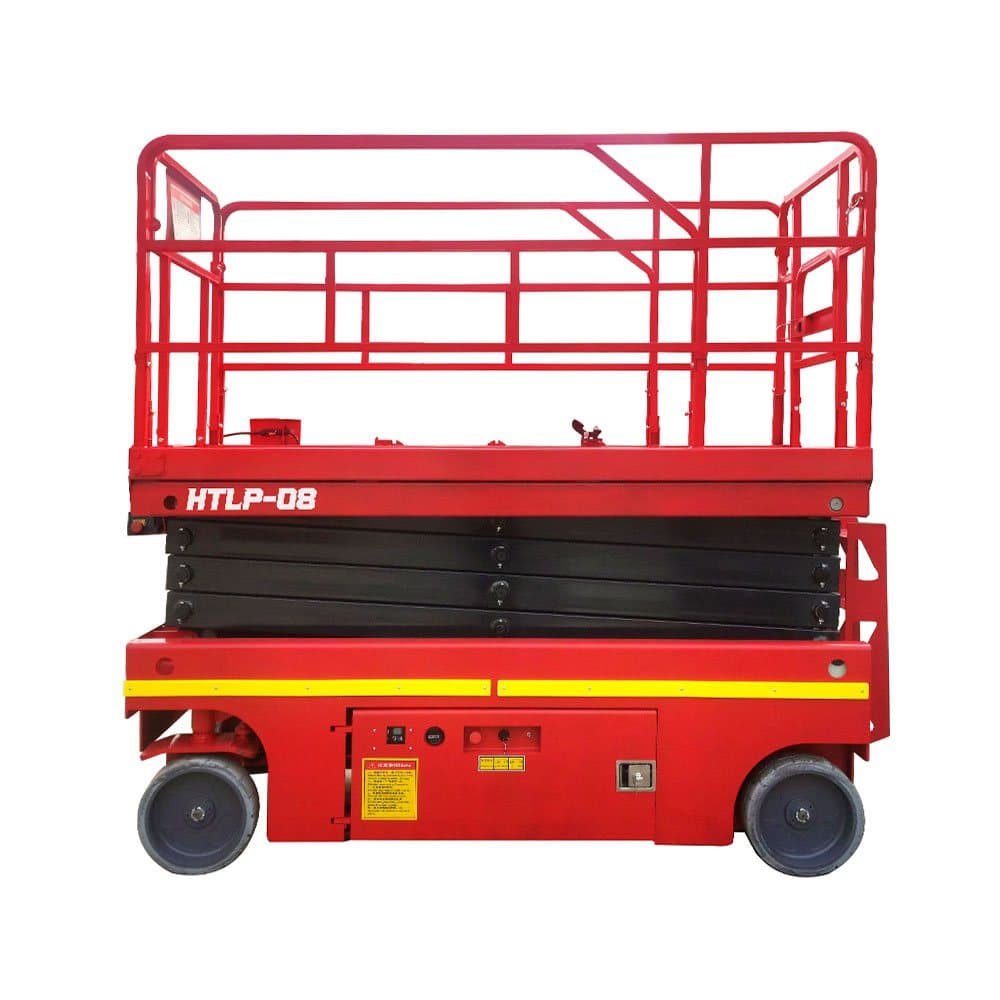

Scissor lift
HTLP-08
Reaches a 10-metre working height with 320 kg of load and two people on board. It drives itself on battery power — no cables, no towing — and the railing folds down to clear doorways and low access points.
- Working height
- 10 m
- Load capacity
- 320 kg
- Platform height
- 8 m
- Capacity
- 2 personas
Technical specifications
- Working height
- 10 m
- Load capacity
- 320 kg
- Platform height
- 8 m
- Capacity
- 2 personas
- Platform
- 2.400 × 1.170 mm
- Electrical system
- 24 V · 4,0 kW
- Raise / lower
- 80 / 90 seg
- Travel speed
- 3,5 km/h
- Max gradeability
- 25 %
- Turning radius
- 2.200 mm
- Operating weight
- 2.400 kg
Attachments & accessories
- Extendable platform
- Foldable railing
- Battery charger
Reference specifications from the supplier. They may vary with the chosen configuration and attachments.
